Gain insight through our range of sensing products
and make your business perform better.
iFings
Environmental sensing
Product sensing
Asset sensing
Know when smoke is detected.
- Monitor CO2 levels and detect smoke inside buildings
- Improve response times to fire hazards
- Receive alerts when cigarette smoke is detected in high risk areas
OfficeWarehousingRetail
Know how warm or humid a room is.
- Optimise air conditioning setups
- Improve indoor comfort for customers
- Ensure that optimal storage conditions for products are maintained
RetailOfficeHospitality
Know how bright the light inside a room is.
- Monitor whether lights are turned on or off
- Prevent low-light conditions in high risk work areas
- Increase visibility and readability in stores
RetailOfficeMedical
Know when an appliance loses power or is mechanically unsound.
- Monitor whether appliances are on or off
- Receive alerts when appliances are tilted or moved
- Detect when appliances develop mechanical issues
FactoryRetailFarming
Know if doors or windows are open or closed.
- Detect when people enter or leave areas
- Receive alerts when windows or doors are left open
- Improve access control and security
WarehousingOfficeRetail
Know the temperature of ovens and heating appliances.
- Monitor the cooking temperatures of hot foods
- Receive alerts when hign temperature appliances malfunctions
- Improved, digital cooking records for auditing purposes
RetailHospitalityCatering
Know when motion is detected.
- Detect intruders or animals on premises
- Monitor staff activity in high risk workplaces
- Receive notifications of movement inside secure areas
Property ManagementFarmingRetailKnow when smoke is detected.
- Monitor CO2 levels and detect smoke inside buildings
- Improve response times to fire hazards
- Receive alerts when cigarette smoke is detected in high risk areas
OfficeWarehousingRetailKnow how warm or humid a room is.
- Optimise air conditioning setups
- Improve indoor comfort for customers
- Ensure that optimal storage conditions for products are maintained
RetailOfficeHospitality
Why us
iFings is a proudly South African IOT platform which combines custom engineered hardware with robust, cloud-based software to offer your business a premium sensing solution.
Insights
Our system is designed to deliver true insights in real time. You can decide what to monitor and when to be alerted, putting you in control.
Modular
Modular integration with multiple sensor and business logic allows greater value and decision-making to the overall solution.
Cloud-based
iFings data can be tracked and monitored online on any web-enabled device, allowing you to view and respond to events as they happen.
Connectivity
Our devices communicate over our own wireless RF mesh network. This reduces cost and offers improved network reliability and uptime.
Real-time alerts
Information when you need it. Our systems translate and present data in real time and alert you as soon as a problem arises.
Custom hardware
We engineer our own hardware, allowing us to provide you with devices that are optimal and more efficient than third-party devices.
Integration
Our back-end enables API integration, allowing businesses to hook data into any existing Business Intelligence solutions they have available.
Software
Your data is always available from any connected device through our desktop and mobile apps, allowing you to stay up to date.
Catalogue
Click on any of the devices in our catalogue for more information. We are constantly expanding our range of sensing devices. Contact us to find out which new iFings devices are being developed and how they can help your business perform better.
9-Axis Motion Pod
Ambient Light Pod
Temp & Humidity Pod
High Temp Probe Pod
PIR Motion Pod
Smoke Detector Pod
Contact Pod
Shadow Pod
SensoStrip
Power Switch
Power Switch
Turn appliances on or off remotely and intelligently. Power Switch is robust, safe and easy to install.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- 3 A switching capability @ 220 Vac
- Input voltage range: 85 - 265 VAC @ 25 °C
- Input voltage frequency range: 47 - 63 HZ @ 25 °C
9-Axis Motion Pod
Measure movement, vibration, tilt and acceleration with the advanced 9-Axis Motion Pod. The device is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Triple-axis silicon monolithic hall-effect magnetic sensor with magnetic concentrator
- Triple-axis accelerometer with a programmable full-scale range of ±2 g, ±4 g, ±8 g and ±16 g
- Embedded gyroscope with factory calibrated sensitivity scale factor
- 10,000 g shock tolerant
- Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes
Ambient Light Pod
Measure ambient light levels (lux) in both indoor and outdoor environments. The Ambient Light Pod is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- Precision optical filtering: Rejects > 99 % (typ) of IR
- 10,000 g shock tolerant
- Measurements: 0.01 lux to 83k lux
Ambient Temperature & Humidity Pod
Measure ambient temperature and humidity levels in rooms, storage areas and outdoor spaces. The Ambient Temperature and Humidity Pod is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Relative humidity range: 0 to 100 %
- Humidity accuracy: ± 4.5 % rH, 20 to +80 % rH
- rH sensitivity: 0.004 % rH/LSB
- Temperature accuracy: ± 0.5 °C, 15 to +40 °C
- Programmable output power up to 7 dBm
High temperature Probe Pod
Measure temperatures in high temperature appliances such as ovens, fryers and other food service equipment. The High Temperature Probe Pod is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Internal cold junction compensation
- Laser wafer trimmed to 1 °C initial accuracy and 0.025 °C/°C ambient temperature rejection
- Stainless steel probe tips with stainless steel braided tail
- Long-term maximum temperature: 400 °C
- Short-term maximum temperature: 450 °C
PIR Motion Pod
The PIR Motion Pod can detect the motion of small animals, children and adults up to 12 meters away. This Pod is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- Detection distance: Up to 12 m
- Excellent resistance to electromagnetic noise
- High signal/noise ratio to minimize false operation
Smoke Detector Pod
Trigger an alarm when smoke is detected.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- EN54-7 compliant smoke detection
- Integrated EN54-5 compliant heat sensing capability
- Programmable sensing intervals
- Efficient battery consumption
- Durable, robust casing to shield electronics
Contact Pod
Detect when windows, doors or gates are opened or closed. The Contact Pod is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- Embedded contact sensor
- Up to 4 contact sensor probes supported simultaneously
- On-board reed switch
- Maximum operating gap for contact sensor: 4 cm
- Default probe cable length: 2 m
Shadow Pod
Track the movement of people or vehicles. The Shadow Pod is robust, dust-proof and easy to mount on clothing and vehicles.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- Efficient battery consumption
- Durable, robust casing to shield electronics
SensoStrip
Monitor on-shelf stock availability in real time. SensoStrip is durable, non-obtrusive and easy to install on shelving.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- Available in a variety of sensing area lengths
- Up to 32 product sensing elements
- Programmable sensing intervals
- Efficient battery consumption
- Durable, robust casing to shield electronics
Power Switch
Turn appliances on or off remotely and intelligently. Power Switch is robust, safe and easy to install.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Programmable output power up to 7 dBm
- Supply-voltage range: 2 V to 3.6 V
- 3 A switching capability @ 220 Vac
- Input voltage range: 85 - 265 VAC @ 25 °C
- Input voltage frequency range: 47 - 63 HZ @ 25 °C
9-Axis Motion Pod
Measure movement, vibration, tilt and acceleration with the advanced 9-Axis Motion Pod. The device is robust, dust-proof and easy to mount on almost any surface.
Technical specifications
- ARM® Cortex®-M3 onboard chip
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Receiver sensitivity: -97 dBm
- Triple-axis silicon monolithic hall-effect magnetic sensor with magnetic concentrator
- Triple-axis accelerometer with a programmable full-scale range of ±2 g, ±4 g, ±8 g and ±16 g
- Embedded gyroscope with factory calibrated sensitivity scale factor
- 10,000 g shock tolerant
- Minimal cross-axis sensitivity between the accelerometer, gyroscope and magnetometer axes

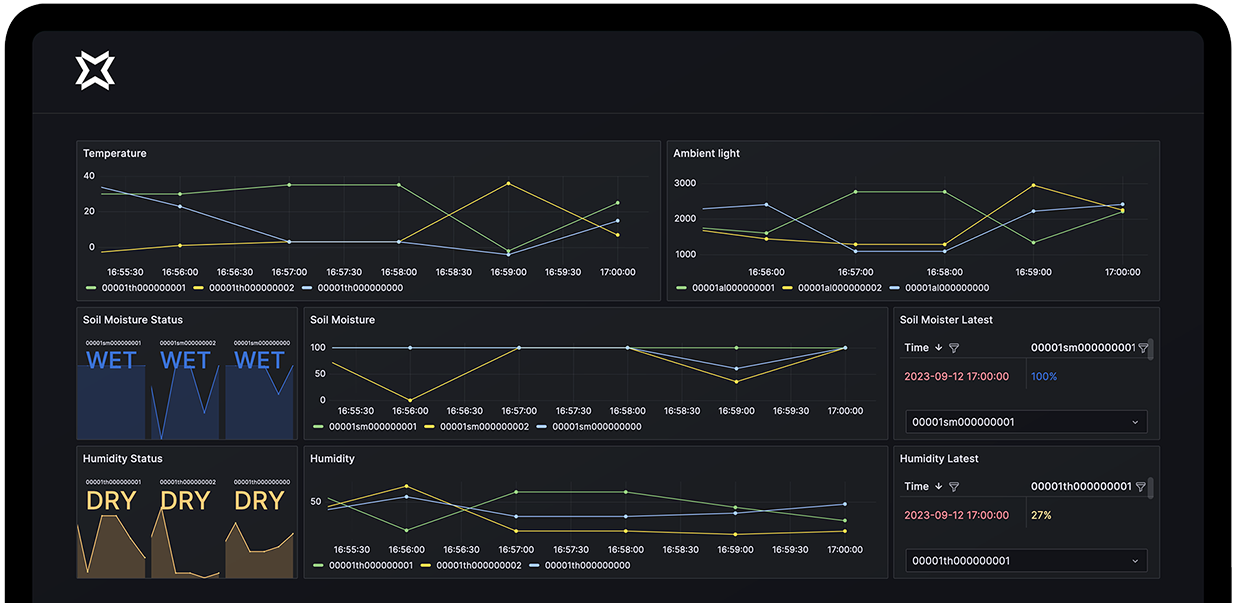

Software
Our beautifully designed web-based software runs on all platforms, allowing you to access your iFings data on the go.
View sensing data in real time
Manage hardware status remotely
Perform rule-based insight tracking
Receive instant notifications
Manage multiple locations
Create custom reports
Stats
iFings has racked up some impressive numbers so far, illustrating our expertise in handling big data efficiently and reliably.
Devices monitored
Gigabytes of data processed
Records saved
Contact
If you have any questions or you would like to find out how iFings can benefit your business, give us a call. You can also contact us by email and we'll get back to you.
